PACKAGE TYPE TREATMENT PLANTS

PACKAGE TYPE TREATMENT PLANTS

Package type treatment is basically the mobile treatment plant of the wastewater treatment plant, which is produced as modular in portable sizes. The working principle of package type treatment systems designed for the treatment of domestic or industrial wastewater is based on the purification of water by physical and/or chemical means. The sections of the Package Type Treatment Units are as follows;
• Grid channel
• Pre-settling chamber
• Balancing chamber
• Biological reactor

Makfen Package Type Treatment Plants and units, which are compactly designed and mostly designed for domestic biological wastewater, have a much easier use than mechanical systems by making the advanced process technology called SBR (Sequential Batch Activated Sludge) full automatic by PLC automation system.

Due to the bacteria that perform the purification function in Package Type Treatment Plants, the impurities in the wastewater are separated and the treated water is discharged to the receiving environment. The environment in which the bacteria performing the purification function are found is called “activated sludge”. A blower (aerator) is used to meet the oxygen need of the bacteria in the activated sludge and to provide full mixing conditions in the reactor. In order to transfer the air supplied by the blower to the wastewater in a diffuse way, special membrane type diffusers with non-clogging structure are used. While the water treated in the facility is removed from the system by the discharge pump, automatic chlorine dosage is applied to the treated water for disinfection.

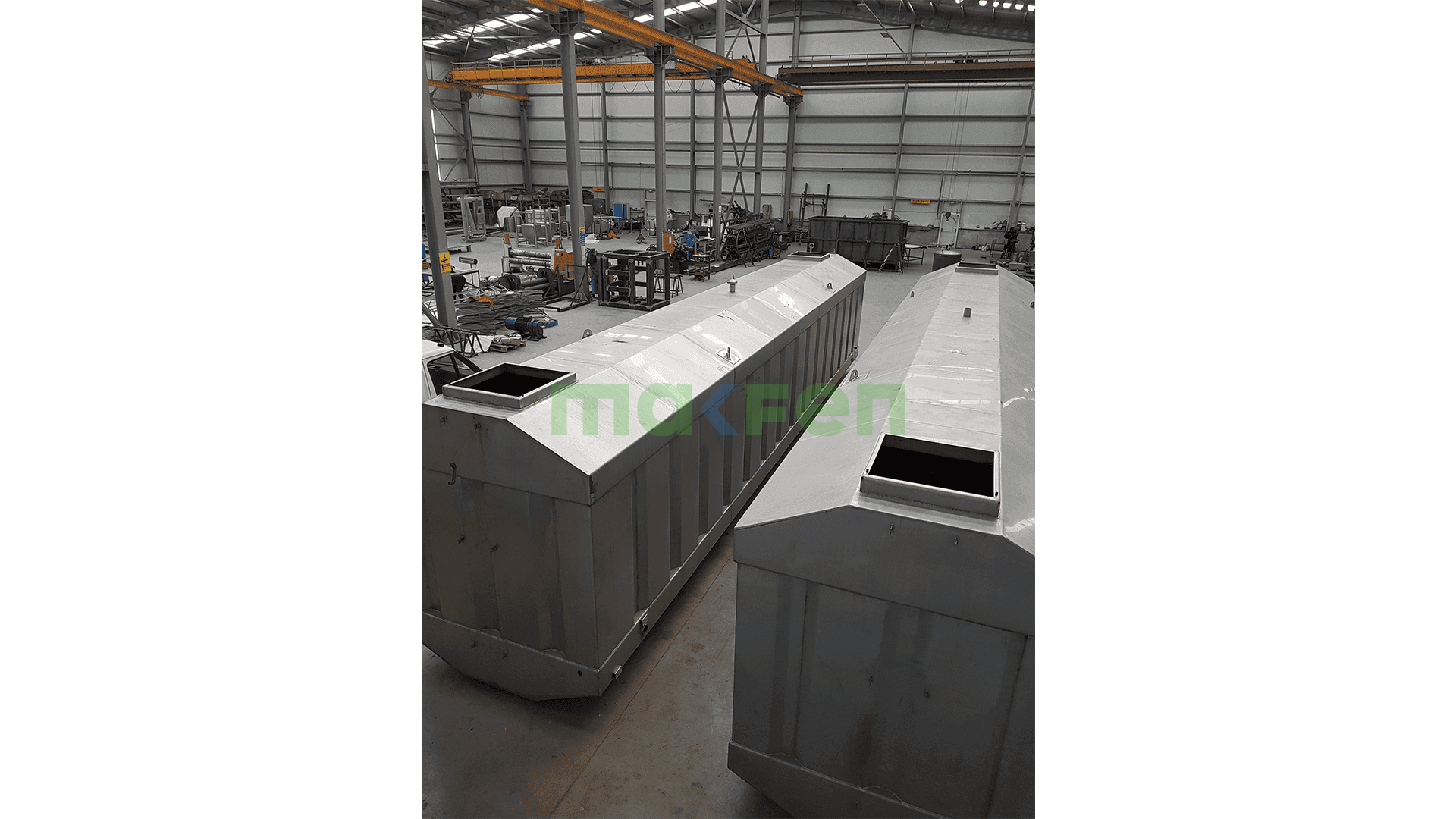

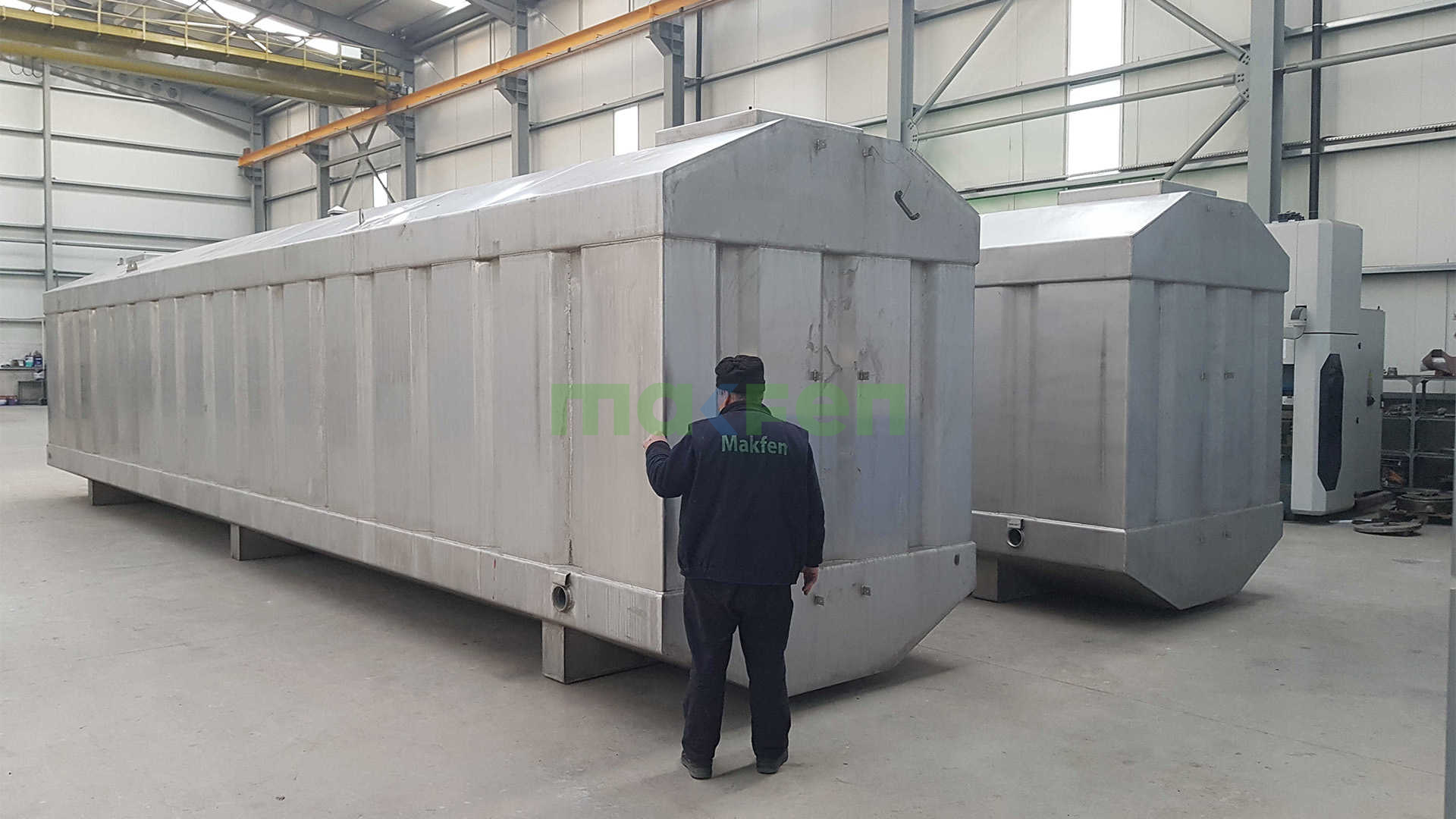

Package Type Treatment Plants are mostly produced from ST37 quality carbon steel due to the corrosive feature of water. Stainless steel can also be used according to customer demands and preferences.

Usage areas:
- Hotels
- Resorts
- Summer Sites
- Construction sites
- School, Hospital and Military Facilities
- Campgrounds
- Recreational facilities
- Gas Stations etc.
- Housing and mass housing
- Touristic facilities
- Factory and industrial establishments
- Summer estates and villas
- Villages and municipalities
- Social facilities

Advantages
- Portable Modular Design
- Easy to Assemble
- Easy to Commission
- Low Energy Consumption
- Purified Water of Usable Quality for Irrigation
- Underground and Aboveground Installation
- Fully Automatic System
- Maximum Labor Requirement
- Developable automation
- Expandable capacity
- Ability to work at full and half capacity
- High purification efficiency
- Odorless and noiseless operation

Makfen not only undertakes the design of the plant, but also designs projects that are environmentally acceptable and compatible with the environment, while it installsthePackage Type Treatment Plantsthat meet your requests and needs. Makfen, which attaches importance to nature and living health, and succeeded to stand out in the sector by taking innovative steps, has thus produced effective solutions and increased the performance of the systems it has installed and has made great contributions to reduce/prevent any environmental impacts. TheMakfen team,which addsthe environmental factors to the design parameters of the Package Type Treatment Plants, performs the turnkey plant installation of all processes such as project design, manufacturing, assembly, instrumentation, piping, insulation, electrical wiring, performance tests and commissioning.

• Design and Manufacturing in accordance with User Requests and in International Standards;
• Selection of Materials and Workmanship Suitable for Terms of Use;
• Use of Completely Certified Materials;
• High Quality and Long Life Guarantee;
• Jackets or Heating / Cooling Coils;
• Thermal Insulation;
• Mechanical or Soft Seal Suitable for the System;
• Complete Use and Maintenance Documentation;
• Mixer Speed Control;
• PLC Management Panel;
• CIP Applications;
• Precision Weighing System;
• Mixer Wing and Breakwater Suitable for Product Characteristics;
• High Pressure and Vacuum Resistant Manufacturing;
• Ex-proof / IP Engine; and
• Polishing and Painting Processes Suitable for Material Quality.

Click to get any information about installation of the Package Type Treatment Plants and prices.

Click for our other plant services that we established apart from the Package Type Treatment Plants.

Tags: #Package Type Treatment Plants #Treatment Plants #Plant #Treatment #Installation of the Package type treatment plant
