INDUSTRIAL MIXER MANUFACTURING

Industrial mixer manufacturing is the design and production of mixing vessels used to blend liquid, viscous and paste-like products in sectors such as food, chemicals, paints, pharmaceuticals and cosmetics. Makfen has been manufacturing industrial mixers since 2009 and offers design, manufacturing and technical support together. The type of mixer is chosen according to the viscosity of the product and the purpose of the process.

Types of Industrial Mixer

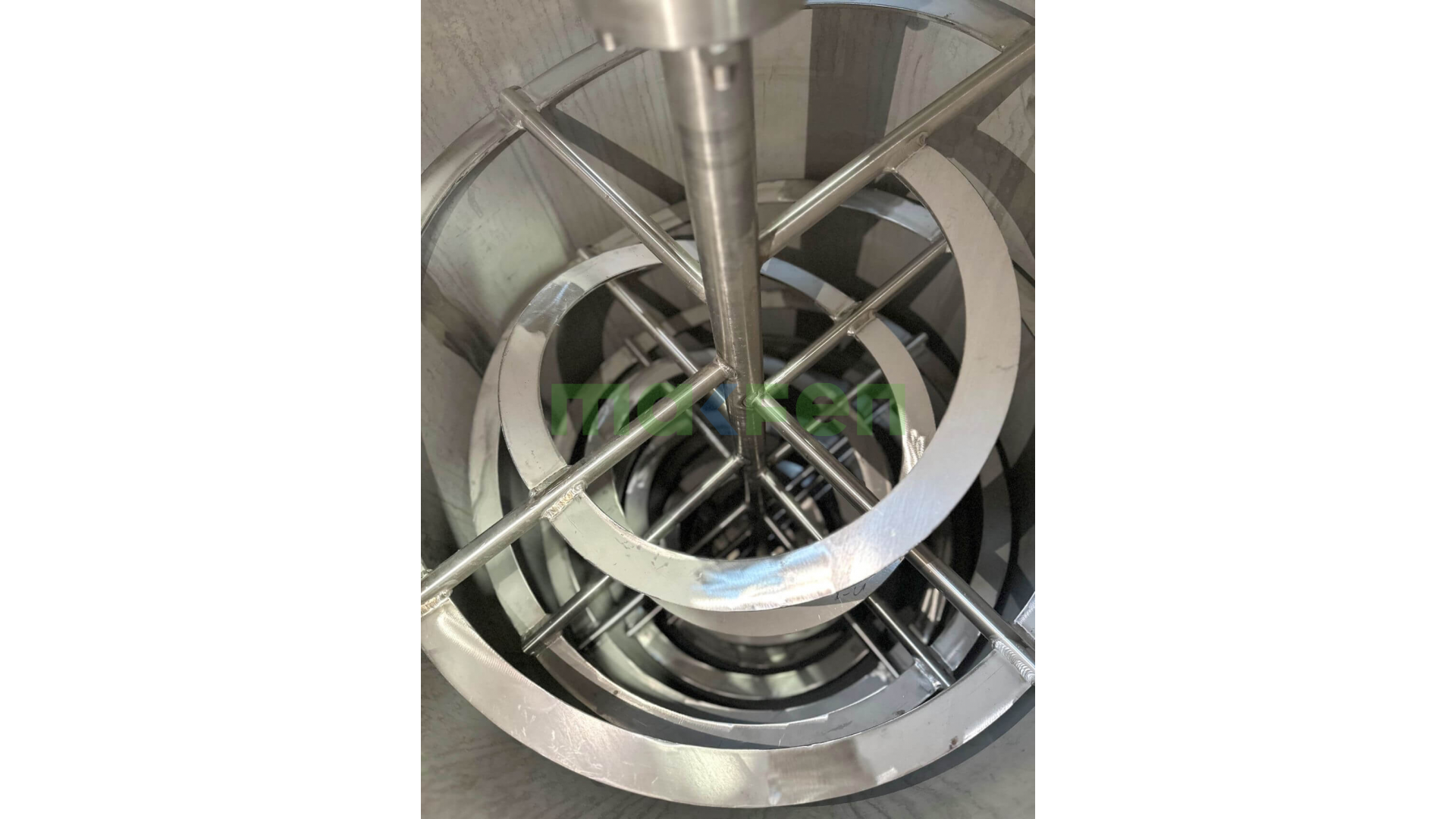

• Low-speed anchor or scraper mixers (for high-viscosity products)
• Propeller and turbine mixers (for low- and medium-viscosity liquids)
• High-speed disperser (dissolver) mixers (for dispersing powders in liquids)
• Mixers fitted with a rotor–stator homogeniser (for emulsions and creams)
• Vacuum mixers (for mixing without entraining air)

Technical Options in Industrial Mixer Manufacturing

• AISI 304L or 316L stainless steel or carbon steel body
• Impeller, baffles and speed control matched to the product
• Jacket or coil for heating and cooling, with thermal insulation
• Mechanical or soft packing seal suited to the system
• Ex-proof or suitably IP-rated motor and PLC control panel where required
• Surface finish suited to the material: polishing for stainless steel, painting for carbon steel

Contact our team for technical questions and a quotation for industrial mixer manufacturing.
